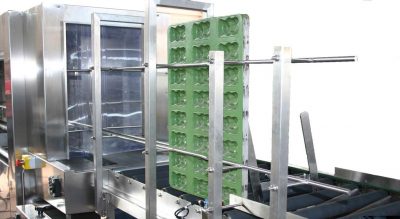

Automatic washing machine for pans, moulds and boxes

This machine is completely made of Aisi 304 stainless steel.
It can be inserted in an automatic line for pan and box conveying or it can be used independently. The electric control box is equipped with Touch Screen for working data management and programme storing. This machine can be used both for horizontal and vertical washings. Max. recommended speed is 18m/min. The washing system works with disposable water but makes use of overflow levels in the various chambers to reduce water consumption.

First chamber: pre-washing with warmed water, the system is equipped with electropump with adjustable pressure on the nozzles.

Second chamber: washing with warmed water, the system is equipped with electropump with adjustable pressure on the nozzles.

Third chamber: rinsing with cold water, the system is equipped with electropump with adjustable pressure on the nozzles.

Fourth chamber: dripping by means of electric fans.
